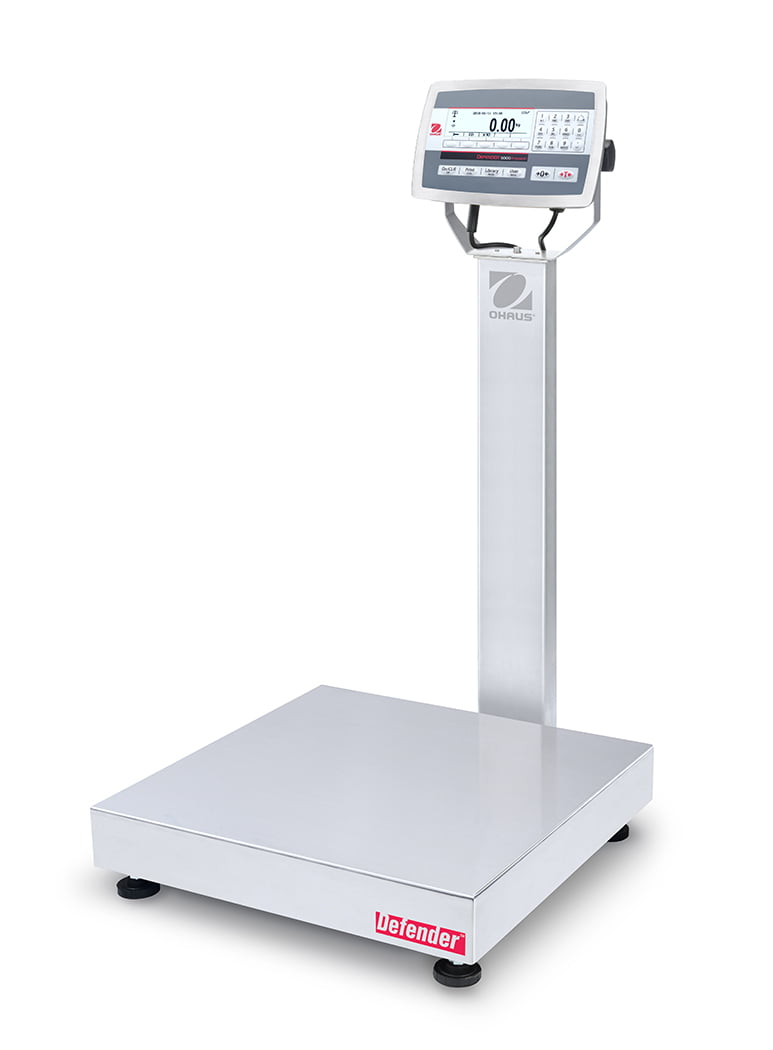

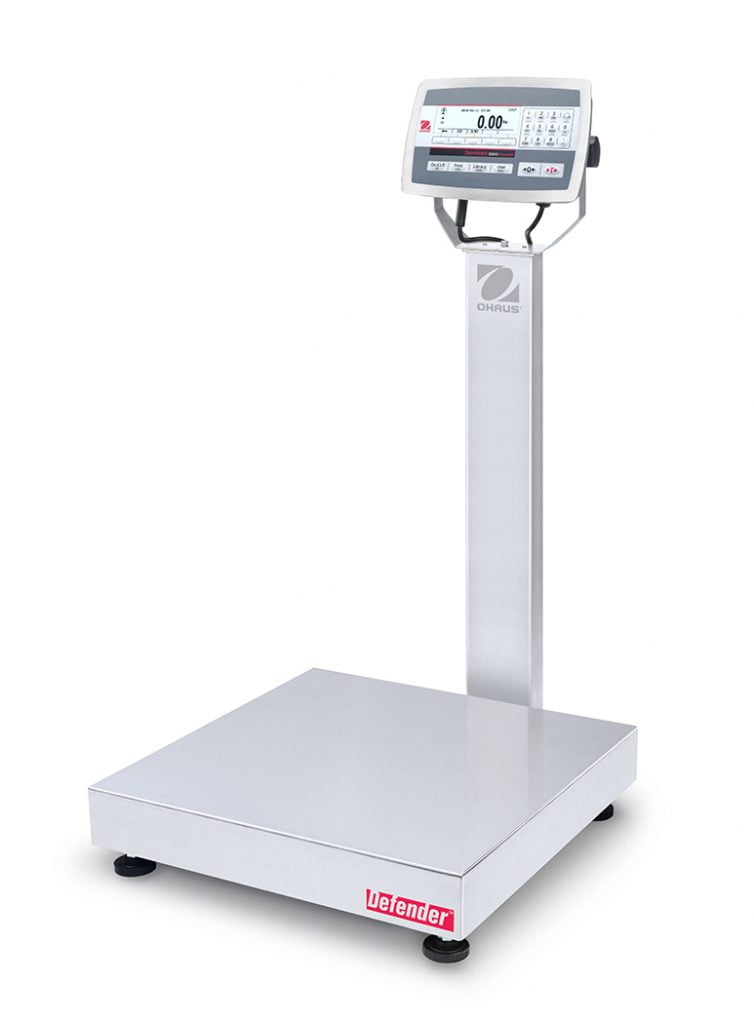

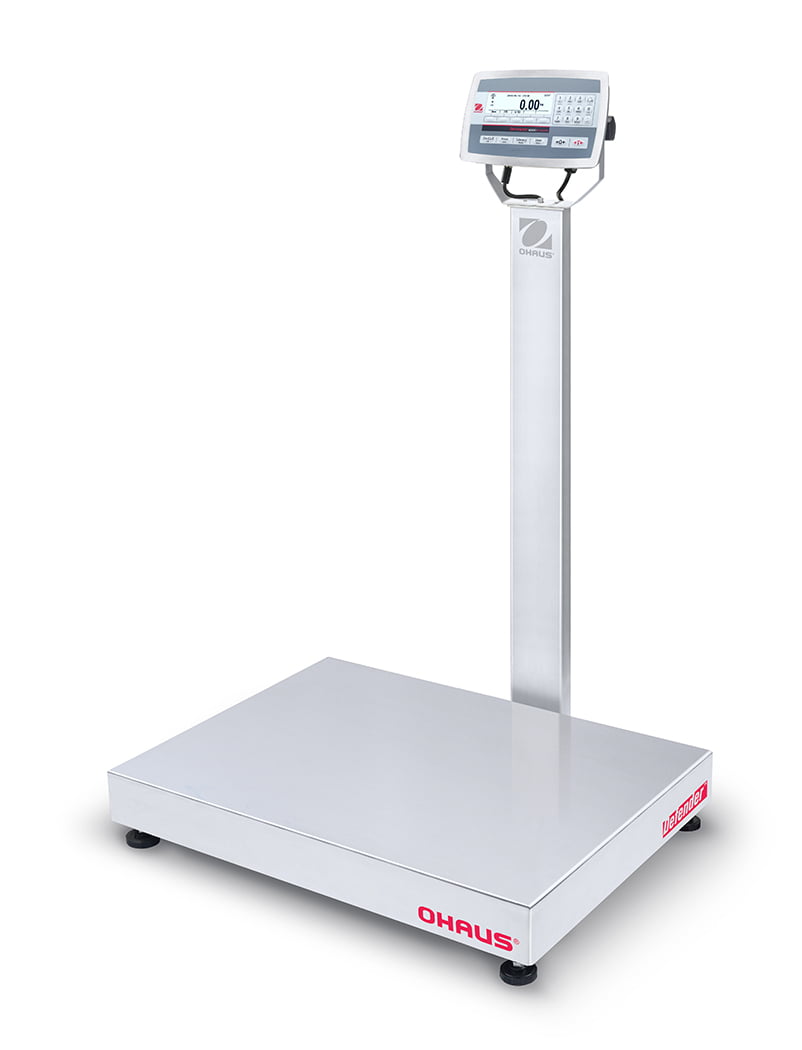

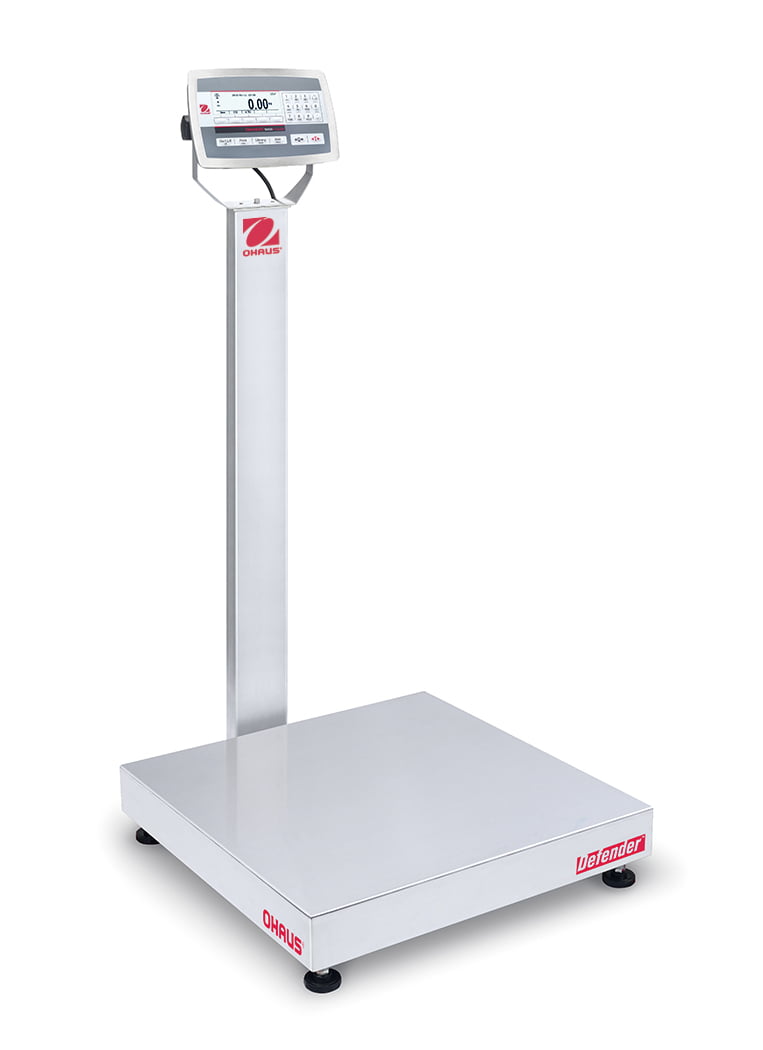

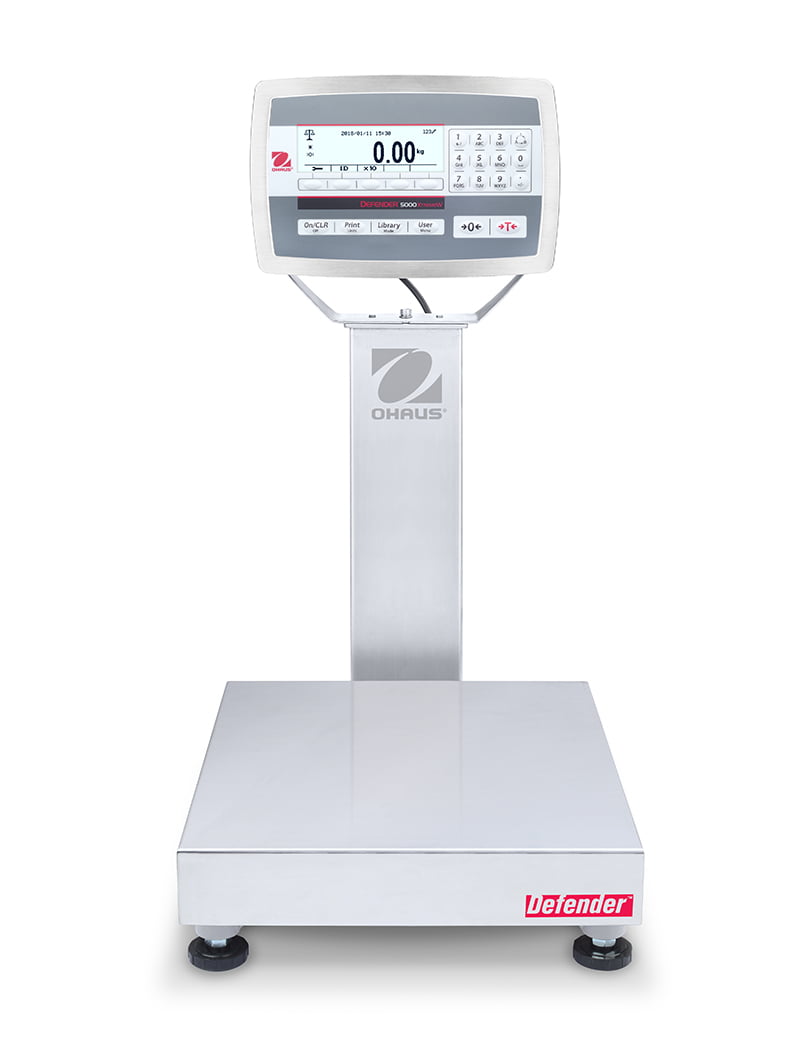

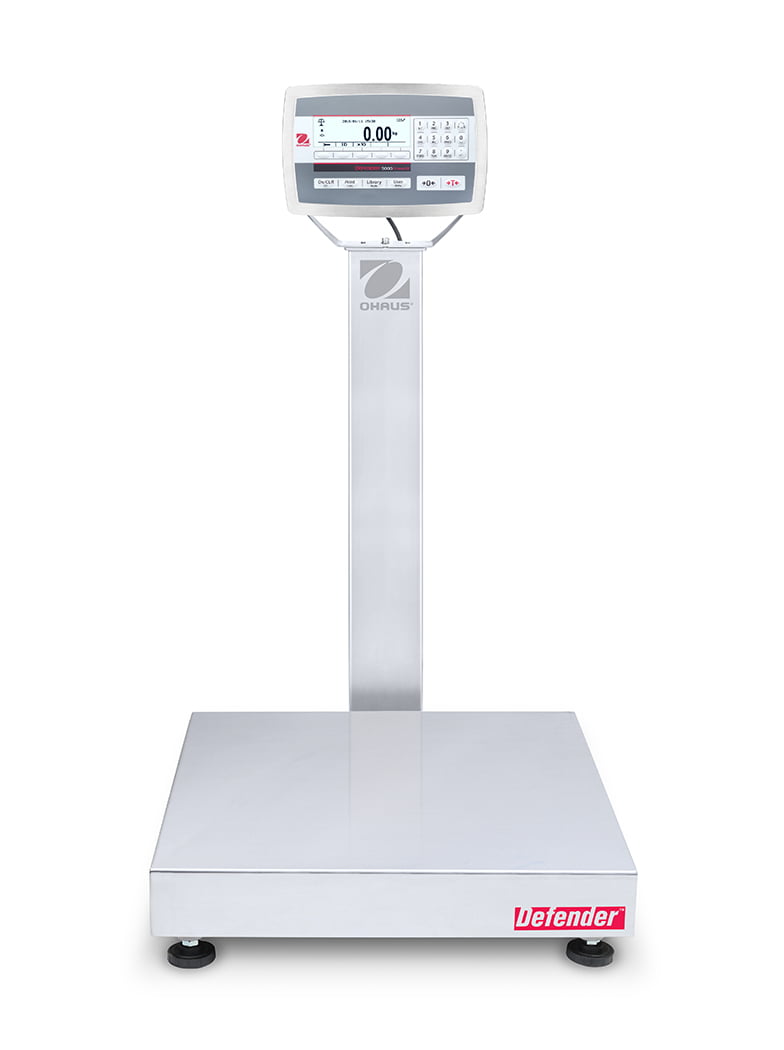

Ohaus Defender™ 5000 Hybrid

Ohaus Defender™ 5000 Hybrid
Free

Ohaus Defender™ 5000 Hybrid

Proizvajalec: Ohaus
Dobavni rok: 1-2 tedna


Multifunctional Bench Scale for Standard Industrial Applications

  • Multiple Connectivity Options for Convenient Data Transfer and Storage
  • Durably Constructed To Withstand Harsh Industrial Environments
  • Multiple Application Modes and High Storage Capacity for Greater Flexibility

Vas zanima več? Pošljite nam sporočilo

Brošure

Defender™ 5000 Hybrid Brošura

Uporabniški priročnik

Dodaj datoteko pdf

Video

Application

Weighing, parts counting, percent weighing, check weighing, dynamic weighing (display hold)

Display

Backlit Liquid Crystal Display (LCD), 256 x 80 pixels

Operation

Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)

Communication

Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock

Construction

IP68 stainless steel indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, IP67 aluminium load cell, non-slip adjustable rubber feet

Design Features

User-configurable resolution up to dual range 15,000d/3,000e, 150% overload capacity protection, check weighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, auto tare

Modeli tehtnice

ModelCapacityReadability
(d)
Readability
(e)
Platform mmItem N°
D52XW6RQDR1-EU3 kg / 6 kg0.2 g / 0.5 g305 x 30530444804
D52XW15RQDR1-EU6 kg / 15 kg0.5 g / 1 g305 x 30530444805
D52XW15RQDL2-EU6 kg / 15 kg0.5 g / 1 g400 x 40030444806
D52XW30RQDL2-EU15 kg / 30 kg1 g / 2 g400 x 40030444807
D52XW60RQDL2-EU30 kg / 60 kg2 g / 5 g400 x 40030444808
D52XW60RQDX2-EU30 kg / 60 kg2 g / 5 g500 x 50030444809
D52XW150RQDX2-EU60 kg / 150 kg5 g / 10 g500 x 50030444810
D52XW60RQDV3-EU30 kg / 60 kg2 g / 5 g610 x 61030444811
D52XW150RQDV3-EU60 kg / 150 kg5 g / 10 g610 x 61030444812
D52XW300RQDV3-EU150 kg / 300 kg10 g / 20 g610 x 61030444813
D52XW150RTDV3-EU60 kg / 150 kg5 g / 10 g800 x 60030444814
D52XW300RTDV3-EU150 kg / 300 kg10 g / 20 g800 x 60030444815
D52XW600RTDV3-EU300 kg / 600 kg20 g / 50 g800 x 60030444816
D52XW6RQDR1-M3 kg / 6 kg1 g / 2 g305 x 30530461579
D52XW15RQDR1-M6 kg / 15 kg2 g / 5 g305 x 30530461580
D52XW15RQDL2-M6 kg / 15 kg2 g / 5 g400 x 40030461581
D52XW30RQDL2-M15 kg / 30 kg5 g / 10 g400 x 40030461582
D52XW60RQDL2-M30 kg / 60 kg10 g / 20 g400 x 40030461583
D52XW60RQDX2-M30 kg / 60 kg10 g / 20 g500 x 50030461584
D52XW150RQDX2-M60 kg / 150 kg20 g / 50 g500 x 50030461585
D52XW60RQDV3-M30 kg / 60 kg10 g / 20 g610 x 61030461586
D52XW150RQDV3-M60 kg / 150 kg20 g / 50 g610 x 61030461587
D52XW300RQDV3-M150 kg / 300 kg50 g / 100 g610 x 61030461588
D52XW150RTDV3-M60 kg / 150 kg20 g / 50 g800 x 60030461589
D52XW300RTDV3-M150 kg / 300 kg50 g / 100 g800 x 60030461590
D52XW600RTDV3-M300 kg / 600 kg100 g / 200 g800 x 60030461591

Dodatki in potrošni material

AccessoriesItem N°
WiFi/BT Dongle, OHAUS (Requires 30424406) **30412537
Analog Output Kit, TD52 ***30424403
2nd RS232/RS485/USB, TD52 ***30424404
Battery Kit, Li-ion, TD5230424405
USB Host for Dongle, TD5230424406
Light Tower, R-Y-G, IP65, 243 mm, 24VDC (Requires 30097591)30424021
In-use Cover Set, TD52P30424022
In-use Cover Set, TD52XW30424023
In-use Cover Set (10), TD52P30469948
In-use Cover Set (10), TD52XW30469949
Wall Mount Kit, SST, TD52XW30424026
Wall Mount Kit, CS, TD52P30424027
LC Extension Cable, 9 meters, D52 *30424409
M16 Gland with Ferrite, to TD5230379716
Micro SD Card, 8G30303533
I/O with Relay (2 In/4 Out) ***30097591
Ethernet Kit, D52 **30429666
Carrying Handle Kit, D52xx30424024
Printer Holder Kit, D52xx30424025
Cable Kit, LC, 6 meters, DF52xx30424408
Column Kit, 35 cm, CS, D52xx30424410
Column Kit, 68 cm, CS, D52xx30424411
Column Kit, 98 cm, CS, D52xx30424412
Column Kit, 35 cm, SST, D52xx30424413
Column Kit, 68 cm, SST, D52xx30424414
Column Kit, 98 cm, SST, D52xx30424415
Cable Kit, Extension for base, D5230429931
Wheel Kit, Defender Series (up to 300Kg models)30372146
Wheel Kit, Defender Series (Not available for models with 600 kg capacity)30372146
Interface Kit RS232-USB30304101
Interface Kit RS232-Ethernet30304102
* Cannot be used for legal-for-trade applications
** Only one of them can be used at the same time
*** Only one of them can be used at the same time
